Features
Specification
ZACK 20 ~ 90: Coolant type boring head
Serrated design make good rigidity and suit for heavy cutting.
Easy and speedy to adjust diameter smoothly by only 1 wrench

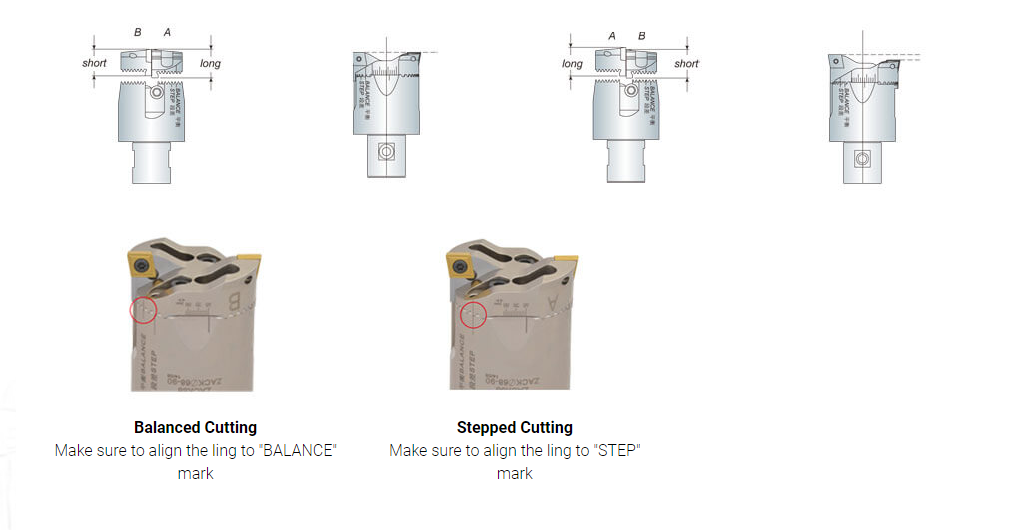

Suitable for both of balanced cutting and stepped cutting
For working material, the inserts divides the most common used 3 types: 1. IRON: KC850, 2. CAST IRON: KC5010, 3. ALUM: KC313.
When ordering, please specify the material code. For example: CCMT 060208 KC850
Model No. | Boring Range | d | D | L | Tool Holder | Inserts | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ZACK20 | 20~26 | 11 | 19 | 38 | ACK1 | CC..060208 | 0.13 |
| ZACK25 | 25~33 | 14 | 24 | 45 | ACK2 | CC..060208 | 0.25 |
| ZACK32 | 32~42 | 18 | 31 | 50 | ACK3 | CC..060208 | 0.30 |
| ZACK41 | 41~54 | 22 | 39 | 65 | ACK4 | CC..09T308 | 0.56 |
| ZACK53 | 53~70 | 28 | 50 | 70 | ACK5 | CC..09T308 | 0.98 |
| ZACK68 | 68~90 | 36 | 64 | 80 | ACK6 | CC..120408 | 1.90 |
| ZACK90 | 90~120 | 36 | 64 | 90 | ACK6 | CC..120408 | 2.80 |
