Serrated design make good rigidity and suit for heavy cutting.
Easy and speedy to adjust diameter smoothly by only 1 wrench

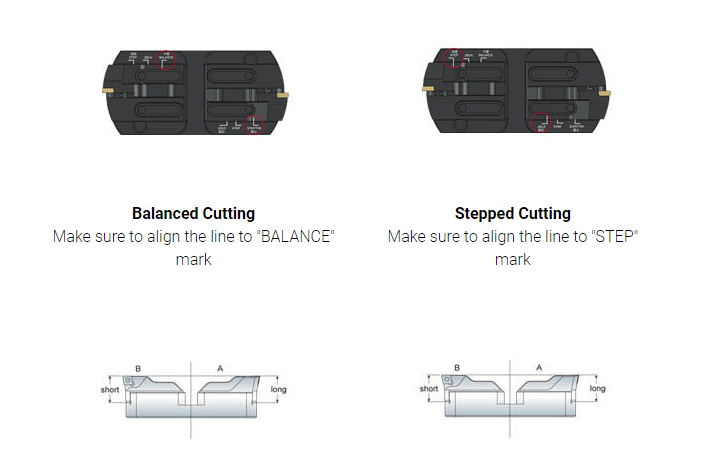

Suitable for both of balanced cutting and stepped cutting

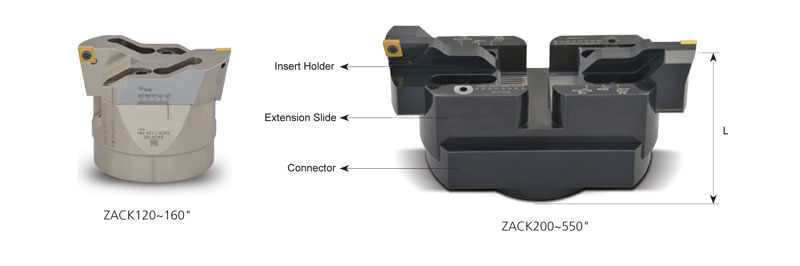

| Model No. | Boring Range | Holder | L | Connector | Extension Slide | Insert Holder | Inserts |
|---|---|---|---|---|---|---|---|
| ZACK120 (4.0kgs) | 120~160 | BST | 95 | – | – | – | CC..120408 |
| ZACK160 (5.2kgs) | 160~200 | – | – | – | |||
| ZACK200 (7.8kgs) | 200~270 | CL180 (3.2kgs) | ES200-270 (3.2kgs) | ZAK200- 620 2PCS/SET 2 个 1 组 (1.4kgs) | |||
| ZACK270 (8.7kgs) | 270~340 | ES270-340 (4.1kgs) | |||||
| ZACK340 (8.9kgs) | 340~410 | ES340-410 (4.3kgs) | |||||
| ZACK410 (9.5kgs) | 410~480 | ES410-480 (4.9kgs) | |||||
| ZACK480 (10.2kgs) | 480~550 | ES480-550 (5.6kgs) | |||||
| ZACK550 (12.9kgs) | 550~620 | CL220 (4.8kgs) | ES550-620 (6.7kgs) |
Unit: mm
