Features
Specification
Accessories
Coolant through design
Notice: The possible vibration will be exist when the L/D1 rate is rising.

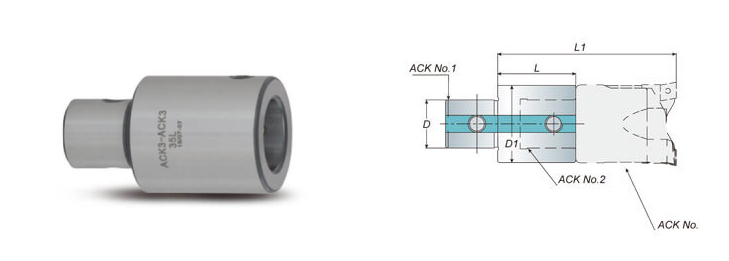

| Model No. | ACK No.1 | ACK No.2 | D | D1 | L | L1 | ACK No. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ACK1-ACK1-20 | ACK1 | ACK1 | 11 | 19 | 20 | 58 | ACK19 | 0.05 |
| ACK1-ACK1-30 | ACK1 | ACK1 | 11 | 19 | 30 | 68 | ACK19 | 0.07 |
| ACK2-ACK2-30 | ACK2 | ACK2 | 14 | 24 | 30 | 75 | ACK25 | 0.10 |
| ACK2-ACK2-45 | ACK2 | ACK2 | 14 | 24 | 45 | 90 | ACK25 | 0.15 |
| ACK3-ACK3-30 | ACK3 | ACK3 | 18 | 31 | 30 | 80 | ACK32 | 0.17 |
| ACK3-ACK3-45 | ACK3 | ACK3 | 18 | 31 | 45 | 95 | ACK32 | 0.25 |
| ACK4-ACK4-45 | ACK4 | ACK4 | 22 | 39 | 45 | 110 | ACK40 | 0.40 |
| ACK4-ACK4-60 | ACK4 | ACK4 | 22 | 39 | 60 | 125 | ACK40 | 0.53 |
| ACK5-ACK5-60 | ACK5 | ACK5 | 28 | 50 | 60 | 130 | ACK53 | 0.88 |
| ACK5-ACK5-90 | ACK5 | ACK5 | 28 | 50 | 90 | 60 | ACK53 | 1.30 |
| ACK6-ACK6-60 | ACK6 | ACK6 | 36 | 64 | 60 | 140/150 | ACK68 | 1.38 |
| ACK6-ACK6-100 | ACK6 | ACK6 | 36 | 64 | 100 | 180/190 | ACK90 | 2.30 |
Unit: mm
