Features
Specification
Accessories
Coolant through design
Notice: The possible vibration will be exist when the L/D1 rate is rising.

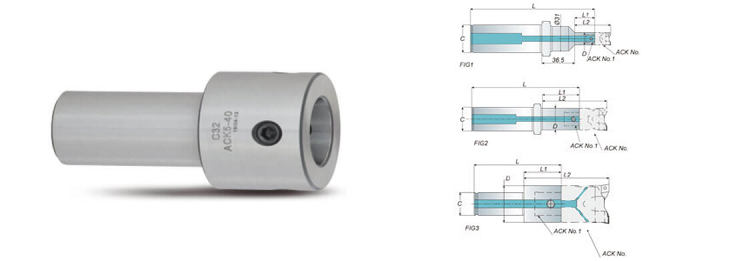

| Model No. | FIG. | C | ACK No. 1 | D | L | L1 | L2 | ACK No. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| C32 ACK1-40 | 1 | 32 | ACK1 | 19 | 40.5 | 157 | 78.5 | ACK19 | 0.70 |
| C32 ACK2-64 | 2 | 32 | ACK2 | 24 | 64.5 | 152.5 | 109.5 | ACK25 | 0.70 |
| C32 ACK3-60 | 2 | 32 | ACK3 | 31 | 60 | 149 | 110 | ACK32 | 0.80 |
| C32 ACK4-58 | 3 | 32 | ACK4 | 39 | 58 | 138 | 123 | ACK40 | 0.90 |
| C32 ACK5-48 | 3 | 32 | ACK5 | 50 | 48 | 128 | 118 | ACK53 | 0.90 |
| C32 ACK6-59 | 3 | 32 | ACK6 | 64 | 59 | 139 | 139/149 | ACK68/ACK90 | 1.50 |
| C42 ACK1-40 | 1 | 42 | ACK1 | 19 | 40.5 | 157 | 79.5 | ACK19 | 1.00 |
| C42 ACK2-64 | 2 | 42 | ACK2 | 24 | 64.5 | 152.5 | 109.5 | ACK25 | 1.00 |
| C42 ACK3-60 | 2 | 42 | ACK3 | 31 | 60 | 149 | 110 | ACK32 | 1.10 |
| C42 ACK4-58 | 3 | 42 | ACK4 | 39 | 58 | 138 | 123 | ACK40 | 1.20 |
| C42 ACK5-48 | 3 | 42 | ACK5 | 50 | 48 | 128 | 118 | ACK53 | 1.30 |
| C42 ACK6-59 | 3 | 42 | ACK6 | 64 | 59 | 139 | 139/149 | ACK68/ACK90 | 1.80 |
