TB Fixed Rough Boring BarBT / NT SERIES

Consult

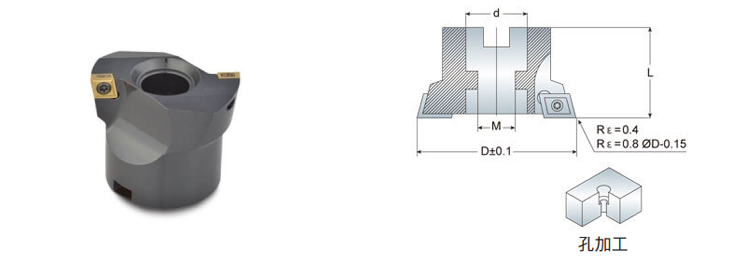

TB 固定式粗搪刀杆-1.jpg

Features

Specification

For working material, the inserts divide the most common used 3 types: 1. IRON: KC850, 2. CAST IRON: KC5010, 3. ALUM: KC313

When ordering, please specify the material code.

For example: CCMT120404 KC850

TB	Model No. (d=22.0)	Model No. (d=25.4)	Insert	Model No. (d=22.0 / 25.4)	Insert	D Rε= 0.4	Teeth
45	TB45-22.0-CC09	TB50-25.4-CC09	CC..09T304		CC..120404	44.8	2
46	TB46-22.0-CC09					45.8
47	TB47-22.0-CC09					46.8
48	TB48-22.0-CC09					47.8
50	TB50-22.0-CC09					49.8
51	TB51-22.0-CC09	TB51-25.4-CC09	CC..09T304		CC..120404	50.8	2
52	TB52-22.0-CC09	TB52-25.4-CC09				51.8
55	TB55-22.0-CC09	TB55-25.4-CC09		TB55-22.0-CC12		54.8
57	TB57-22.0-CC09	TB57-25.4-CC09		TB57-22.0-CC12		56.8
59	TB59-22.0-CC09	TB59-25.4-CC09		TB59-22.0-CC12		58.8
60	TB60-22.0-CC09	TB60-25.4-CC09	CC..09T304	TB60-22.0-CC12	CC..120404	59.8	2
62	TB62-22.0-CC09	TB62-25.4-CC09		TB62-25.4-CC12		61.8
63	TB63-22.0-CC09	TB63-25.4-CC09		TB63-25.4-CC12		62.8
65	TB65-22.0-CC09	TB65-25.4-CC09		TB65-25.4-CC12		64.8
66	TB66-22.0-CC09	TB66-25.4-CC09		TB66-25.4-CC12		65.8
68	TB68-22.0-CC09	TB68-25.4-CC09	CC..09T304	TB68-25.4-CC12	CC..120404	67.8	2
69	TB69-22.0-CC09	TB69-25.4-CC09		TB69-25.4-CC12		68.8
70	TB70-22.0-CC09	TB70-25.4-CC09		TB70-25.4-CC12		69.8
72	TB72-22.0-CC09	TB72-25.4-CC09		TB72-25.4-CC12		71.8
74		TB74-25.4-CC09		TB74-25.4-CC12		73.8
75	TB75-22.0-CC09	TB75-25.4-CC09	CC..09T304	TB75-25.4-CC12	CC..120404	74.8	2
76		TB76-25.4-CC09		TB76-25.4-CC12		75.8
78		TB78-25.4-CC09		TB78-25.4-CC12		77.8
80		TB80-25.4-CC09		TB80-25.4-CC12		79.8
82		TB82-25.4-CC09		TB82-25.4-CC12		81.8
84		TB84-25.4-CC09	CC..09T304	TB84-25.4-CC12	CC..120404	83.8	2
85		TB85-25.4-CC09		TB85-25.4-CC12		84.8
88		TB88-25.4-CC09		TB88-25.4-CC12		87.8
90		TB90-25.4-CC09		TB90-25.4-CC12		89.8
95		TB95-25.4-CC09		TB95-25.4-CC12		94.8

Dimension	d	M	L
TB...-22.0-...	22.0	11	50
TB...-25.4-...	25.4	13	50

Unit: mm
