BSA Rough Boring HolderBT / NT SERIES

Consult

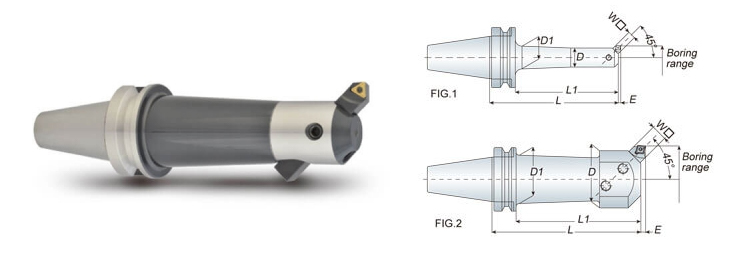

BSA 粗搪刀杆-3-1.jpg

Features

Specification

Accessories

Throw away boring cutter must be ordered separately and the degree must be 45° .

When ordering the throw away boring cutter, please check the W □ .

Model No.	FIG.	Boring Range		D	D1	L	L1	E	W □	Weight (kg)
Model No.	FIG.	Min.	Max.	D	D1	L	L1	E	W □	Weight (kg)
BT40 BSA025-135	1	25	38	20	24	135	110	1	8	1.40
BT40 BSA030-150	1	30	42	24	28	150	125	1.6	8	1.60
BT40 BSA038-165	1	38	52	30	36	165	140	2.6	10	2.00
BT40 BSA050-165	1	50	65	40	48	165	140	3	13	2.50
BT40 BSA050-210	1	50	65	40	48	210	185	3	13	2.90
BT40 BSA062-165	1	62	90	50	58	165	140	2	16	3.20
BT40 BSA062-225	1	62	90	50	58	225	200	2	16	4.20
BT40 BSA072-165	2	72	110	60	60	165	140	2.4	19	3.90
BT40 BSA072-225	2	72	110	60	60	225	200	2.4	19	5.20
BT40 BSA090-165	2	90	125	75	75	165	140	4	19	4.60
BT40 BSA090-210	2	90	125	75	75	210	185	4	19	5.30
BT50 BSA025-135	1	25	38	20	24	135	100	1	8	4.20
BT50 BSA030-165	1	30	42	24	28	165	130	1.6	8	4.40
BT50 BSA038-180	1	38	52	30	36	180	145	2.6	10	4.80
BT50 BSA038-230	1	38	52	30	36	230	195	2.6	10	5.10
BT50 BSA042-210	1	42	56	34	38	210	175	2	10	5.20
BT50 BSA042-240	1	42	56	34	38	240	205	2	10	5.60
BT50 BSA050-180	1	50	65	40	48	180	145	3	13	5.40
BT50 BSA050-240	1	50	65	40	48	240	205	3	13	6.20
BT50 BSA050-270	1	50	65	40	48	270	235	3	13	6.50
BT50 BSA050-300	1	50	65	40	48	300	265	3	13	6.80
BT50 BSA062-195	1	62	90	50	58	195	160	2	16	6.40
BT50 BSA062-240	1	62	90	50	58	240	205	2	16	7.20
BT50 BSA062-270	1	62	90	50	58	270	235	2	16	7.80
BT50 BSA062-300	1	62	90	50	58	300	265	2	16	8.30
BT50 BSA072-195	1	72	110	60	68	195	160	2.4	19	7.30
BT50 BSA072-240	1	72	110	60	68	240	205	2.4	19	8.50
BT50 BSA072-285	1	72	110	60	68	285	250	2.4	19	9.60
BT50 BSA072-320	1	72	110	60	68	320	285	2.4	19	9.70
BT50 BSA090-210	1	90	125	75	74	210	175	4	19	8.60
BT50 BSA090-250	1	90	125	75	74	250	215	4	19	9.80
BT50 BSA090-300	1	90	125	75	74	300	265	4	19	11.10
BT50 BSA105-195	2	105	160	90	76	195	160	3	25	8.60
BT50 BSA105-285	2	105	160	90	76	285	250	3	25	11.60
