BSA Rough Boring HolderSK 系列 DIN69871A

Consult

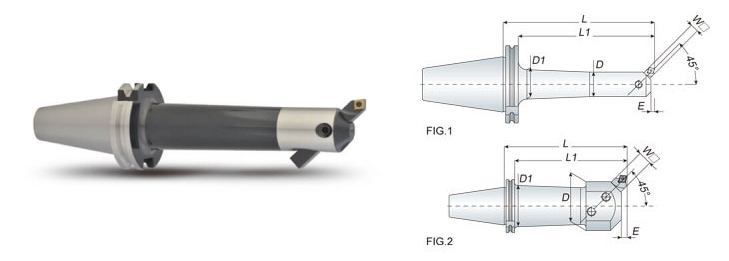

BSA 粗搪刀杆-1.jpg

Features

Specification

Accessories

Throw away boring cutter must be ordered separately and the degree must be 45° .

When ordering the throw away boring cutter, please check the W □ .

Model No.	FIG.	Boring Range		D	D1	L	L1	E	W□	Weight (kg)
Model No.	FIG.	Min.	Max.	D	D1	L	L1	E	W□	Weight (kg)
SK40 BSA025-135	1	25	38	20	22	135	111	1	8	1.30
SK40 BSA030-150	1	30	42	24	26	150	126	1.6	8	1.40
SK40 BSA038-165	1	38	52	30	33	165	141	2.6	10	1.80
SK40 BSA050-165	1	50	65	40	44	165	141	3	13	2.30
SK40 BSA050-210	1	50	65	40	44	210	186	3	13	2.70
SK40 BSA062-165	1	62	90	50	44	165	141	2	16	3.00
SK40 BSA062-225	1	62	90	50	50	225	201	2	16	4.00
SK40 BSA072-165	2	72	110	60	50	165	141	2.4	19	3.70
SK40 BSA072-225	2	72	110	60	50	225	201	2.4	19	5.10
SK40 BSA090-165	2	90	125	75	50	165	141	4	19	4.40
SK40 BSA090-210	2	90	125	75	50	210	186	4	19	5.30
SK50 BSA025-135	1	25	38	20	22	135	98	1	8	3.30
SK50 BSA030-165	1	30	42	24	26	165	128	1.6	8	3.50
SK50 BSA038-180	1	33	52	30	33	180	143	2.6	10	3.90
SK50 BSA042-210	1	42	56	34	37	210	173	2	10	4.30
SK50 BSA050-180	1	50	65	40	44	180	143	3	13	4.50
SK50 BSA050-240	1	50	65	40	44	240	203	3	13	5.30
SK50 BSA062-195	1	62	90	50	56	195	158	2	16	5.50
SK50 BSA062-270	1	62	90	50	56	270	233	2	16	6.90
SK50 BSA072-195	1	72	110	60	66	195	158	2.4	19	6.40
SK50 BSA072-285	1	72	110	60	66	285	248	2.4	19	8.70
SK50 BSA090-210	1	90	125	75	80	210	173	4	19	7.70
SK50 BSA090-300	1	90	125	75	80	300	263	4	19	10.20
SK50 BSA105-195	2	105	160	90	80	195	158	3	25	7.90
SK50 BSA105-285	2	105	160	90	80	285	248	3	25	10.70
