BSB Rough Boring HolderSK 系列 DIN69871A

Consult

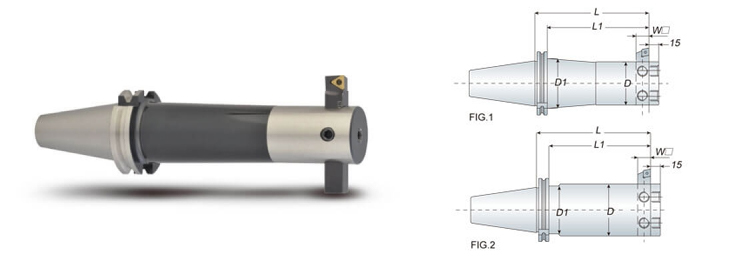

BSB 粗搪刀杆-1.jpg

Features

Specification

Accessories

Throw away boring cutter must be ordered separately and the degree must be 90° .

When ordering the throw away boring cutter, please check the W □ .

Model No.	FIG.	Boring Range		D	D1	L	L1	W□	Weight(kg)
Model No.	FIG.	Min.	Max.	D	D1	L	L1	W□	Weight(kg)
SK40 BSB025-135	1	25	52	20	22	135	111	8	1.30
SK40 BSB038-165	1	38	70	30	33	165	141	10	1.90
SK40 BSB050-165	1	50	90	40	44	165	141	13	2.60
SK40 BSB050-210	1	50	90	40	44	210	186	13	3.20
SK40 BSB062-165	1	62	115	50	44	165	141	16	3.00
SK40 BSB062-225	1	62	115	50	50	225	201	16	4.30
SK40 BSB072-165	2	72	135	60	50	165	141	19	4.20
SK40 BSB072-225	2	72	135	60	50	225	201	19	5.10
SK40 BSB090-165	2	90	150	75	50	165	141	19	5.00
SK40 BSB090-210	2	90	150	75	50	210	186	19	6.20
SK50 BSB025-135	1	25	52	20	22	135	98	8	3.40
SK50 BSB038-180	1	38	70	30	32	180	143	10	4.10
SK50 BSB050-180	1	50	90	40	44	180	143	13	4.80
SK50 BSB050-240	1	50	90	40	44	240	203	13	5.30
SK50 BSB062-195	1	62	115	50	56	195	158	16	5.60
SK50 BSB062-270	1	62	115	50	56	270	233	16	6.90
SK50 BSB072-195	1	72	135	60	66	195	158	19	6.80
SK50 BSB072-285	1	72	135	60	66	285	248	19	8.40
SK50 BSB090-210	1	90	150	75	80	210	173	19	7.70
SK50 BSB090-300	1	90	150	75	80	300	263	19	11.20
SK50 BSB105-195	2	105	190	90	80	195	158	25	8.30
SK50 BSB105-285	2	105	190	90	80	285	248	25	12.00
