Features
Specification
Accessories

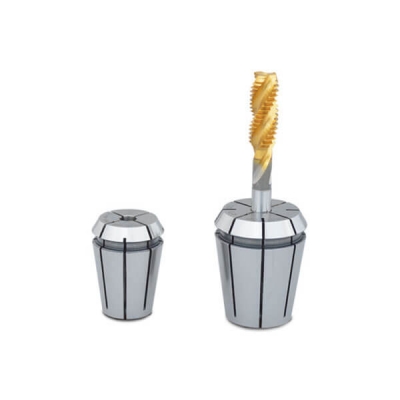

TER tap holder uses the ER spring collet and easy to get.
The nut could not be over tightening to avoid damaging the body and nut.
Straight shank tap holder also has flat shank type to choice. When ordering, please specify "FLAT".
Wrench must be ordered separately.

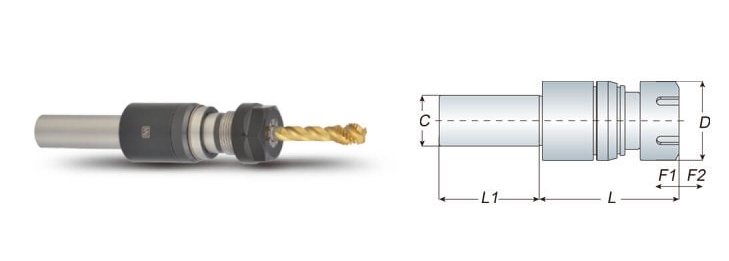

| Model No. | C | D | L | L1 | F1 | F2 | Tapping Range | Collet Type | Weight(kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| C3/4" TER16 | 3/4" | 28 | 1.10" | 75 | 2.953" | 55 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.40 |
| C3/4" TER20 | 3/4" | 34 | 1.34" | 80 | 3.150" | 55 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.50 |
| C3/4" TER25 | 3/4" | 42 | 1.65" | 80 | 3.150" | 55 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 0.80 |
| C1" TER16 | 1" | 28 | 1.10" | 75 | 2.953" | 65 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.50 |
| C1" TER20 | 1" | 34 | 1.34" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.60 |
| C1" TER25 | 1" | 42 | 1.65" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 0.90 |
| C1" TER32 | 1" | 50 | 1.97" | 80 | 3.150" | 65 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.10 |
| C1-1/4" TER16 | 1-1/4" | 28 | 1.10" | 75 | 2.953" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 0.70 |
| C1-1/4" TER20 | 1-1/4" | 34 | 1.34" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 0.80 |
| C1-1/4" TER25 | 1-1/4" | 42 | 1.65" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 1.00 |
| C1-1/4" TER32 | 1-1/4" | 50 | 1.97" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.30 |
| C1-1/2" TER16 | 1-1/2" | 28 | 1.10" | 75 | 2.953" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M10 | ER16GB | 1.00 |
| C1-1/2" TER20 | 1-1/2" | 34 | 1.34" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M3~M12 | ER20GB | 1.10 |
| C1-1/2" TER25 | 1-1/2" | 42 | 1.65" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M16 | ER25GB | 1.30 |
| C1-1/2" TER32 | 1-1/2" | 50 | 1.97" | 80 | 3.150" | 70 | 5 | 0.197" | 12 | 0.472" | M4~M22 | ER32GB | 1.50 |
