Features
Specification
TER tap holder uses the ER spring collet and easy to get.
The nut could not be over tightening to avoid damaging the body and nut.
Wrench must be ordered separately.

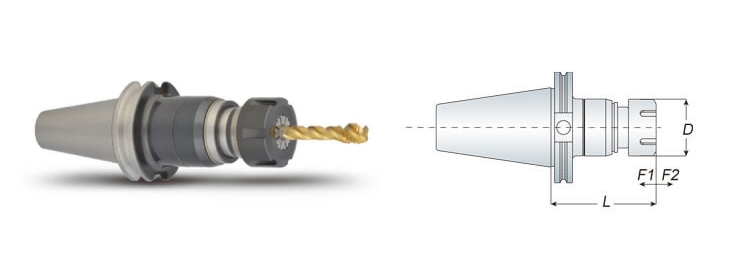

| Model No. | D | L | F1 | F2 | Tapping Range | Collet Type | Weight(kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | ||||
| CAT40 TER16 | 28 | 1.10" | 77 | 3.020" | 5 | 0.197" | 8 | 0.315" | M3~M10 | ER16GB | 1.10 |
| CAT40 TER20 | 34 | 1.34" | 86 | 3.386" | 5 | 0.197" | 8 | 0.315" | M3~M12 | ER20GB | 1.20 |
| CAT40 TER25 | 42 | 1.65" | 90 | 3.543" | 5 | 0.197" | 8 | 0.315" | M4~M16 | ER25GB | 1.40 |
| CAT40 TER32 | 50 | 1.97" | 94 | 3.700" | 5 | 0.197" | 8 | 0.315" | M4~M22 | ER32GB | 1.70 |
| CAT40 TER40 | 63 | 2.48" | 98 | 3.858" | 5 | 0.197" | 8 | 0.315" | M6~M30 | ER40GB | 2.90 |
| CAT50 TER16 | 28 | 1.10" | 80 | 3.150" | 5 | 0.197" | 8 | 0.315" | M3~M10 | ER16GB | 2.70 |
| CAT50 TER20 | 34 | 1.34" | 99 | 3.900" | 5 | 0.197" | 8 | 0.315" | M3~M12 | ER20GB | 2.80 |
| CAT50 TER25 | 42 | 1.65" | 97 | 3.820" | 5 | 0.197" | 8 | 0.315" | M4~M16 | ER25GB | 3.10 |
| CAT50 TER32 | 50 | 1.97" | 95 | 3.740" | 5 | 0.197" | 8 | 0.315" | M4~M22 | ER32GB | 3.30 |
| CAT50 TER40 | 63 | 2.48" | 117 | 4.606" | 5 | 0.197" | 8 | 0.315" | M6~M30 | ER40GB | 4.30 |
Unit: mm
