Features
Specification
Accessories
ATP tap holder is with tension and compression, so it can extend the tap lifetime.

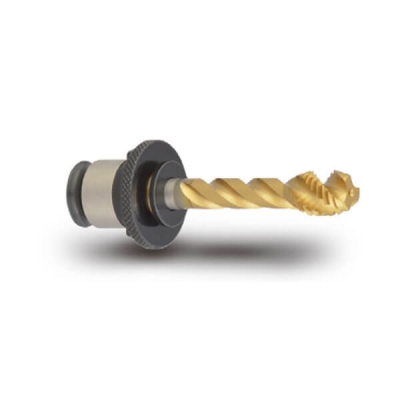

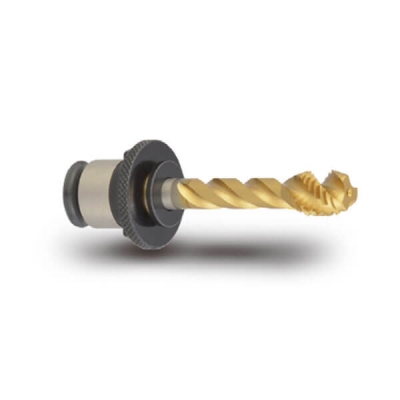

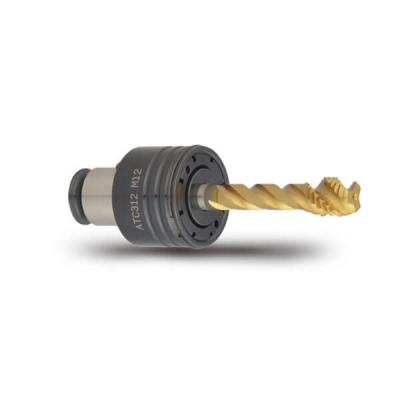

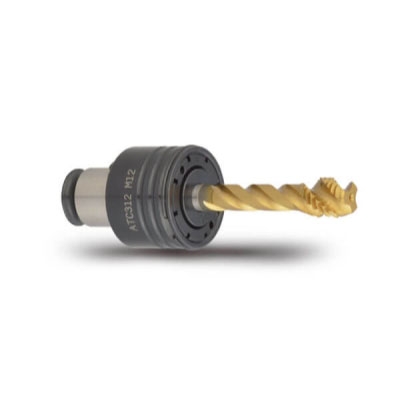

Torque control type and positive drive type tap collets can be used for ATP tool holder.

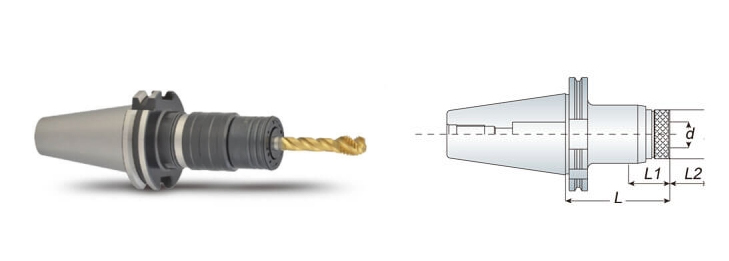

| Model No. | d | D | L | L1 | L2 | Tapping Range | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| SK30 ATP312 | 19 | 36 | 70 | 6~10 | 6~10 | M3~12 | ATC312 | 0.80 |
| SK40 ATP312 | 19 | 36 | 75 | 6~10 | 6~10 | M3~12 | ATC312 | 1.10 |
| SK50 ATP312 | 19 | 36 | 85 | 6~10 | 6~10 | M3~12 | ATC312 | 3.20 |
| SK40 ATP822 | 31 | 53 | 110 | 6~10 | 6~10 | M8~22 | ATC822 | 2.00 |
| SK50 ATP822 | 31 | 53 | 105 | 6~10 | 6~10 | M8~22 | ATC822 | 4.00 |
