Features
Specification
Accessories

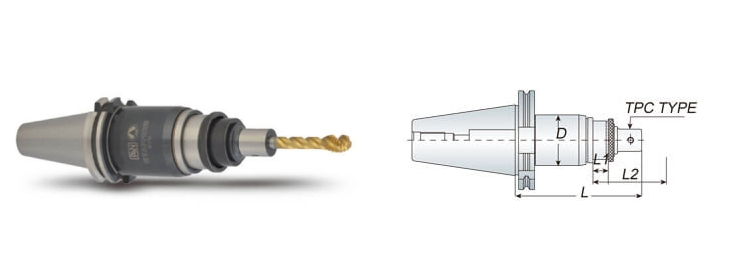

L1: Compression, L2: Tension

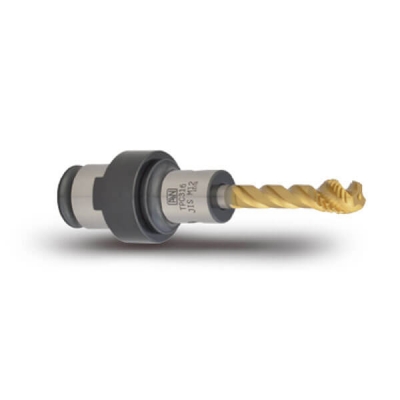

Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
| Model No. | D | L | L1 | L2 | Tapping Range | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|---|
| SK40 TPM316 | 48 | 145 | 10 | 20 | M3~16 | TPC316 | 1.50 |
| SK50 TPM316 | 48 | 190 | 10 | 20 | M3~16 | TPC316 | 3.10 |
| SK40 TPM830 | 66 | 145 | 10 | 25 | M8~30 | TPC830 | 2.50 |
| SK50 TPM830 | 66 | 190 | 10 | 25 | M8~30 | TPC830 | 3.40 |
