Features
Specification
Accessories

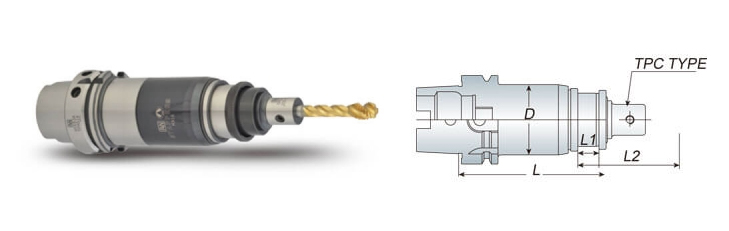

L1: Compression, L2: Tension
Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
| Model No. | D | L | L1 | L2 | Tapping Range | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|---|
| HSK63A TPM316 | 48 | 135 | 10 | 20 | M3~M16 | TPC316 | 1.80 |
| HSK63A TPM830 | 66 | 165 | 10 | 25 | M8~M30 | TPC830 | 2.80 |
| HSK100A TPM316 | 48 | 150 | 10 | 20 | M3~M16 | TPC316 | 3.50 |
| HSK100A TPM830 | 66 | 170 | 10 | 25 | M8~M30 | TPC830 | 4.60 |
