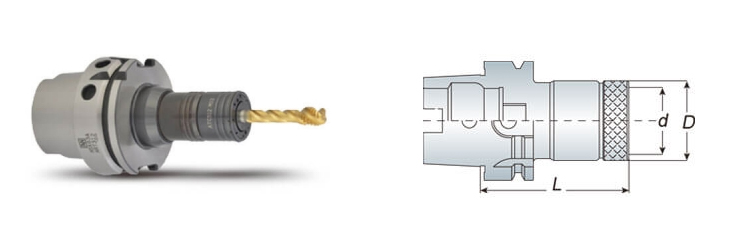

ATP tap holder is with tension and compression, so it can extend the tap lifetime.
Torque control type and positive drive type tap collets can be used for ATP tool holder.
| Model No. | d | D | L | Tapping Range | Collet Type | Weight(kg) |
|---|---|---|---|---|---|---|
| HSK63A ATP312 | 19 | 36 | 120 | M3~M12 | ATC312 | 0.90 |
| HSK63A ATP822 | 31 | 53 | 148 | M8~M22 | ATC822 | 1.60 |
| HSK100A ATP312 | 19 | 36 | 140 | M3~M12 | ATC312 | 3.10 |
| HSK100A ATP822 | 31 | 53 | 155 | M8~M22 | ATC822 | 3.80 |
