Features
Specification

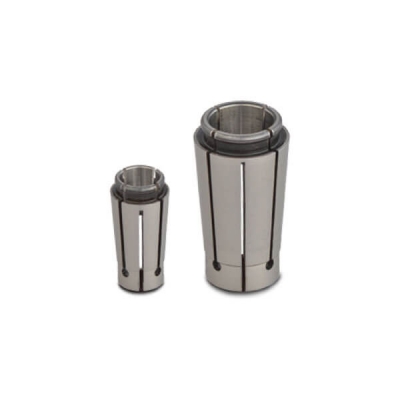

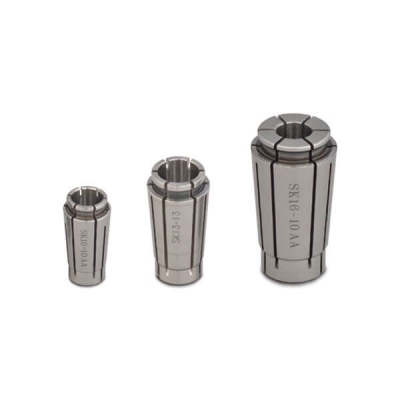

Accessories
Compression and tension compensation at 0.5mm to make an accurate thread is maintained
Internal buffer of compression compensation reduce the pressure of torque for taps by 1/3
Tension compensation reduce the toque that increases the quantity and accuracy of tapped hole
Special design make good tapping accuracy and have long term tapping

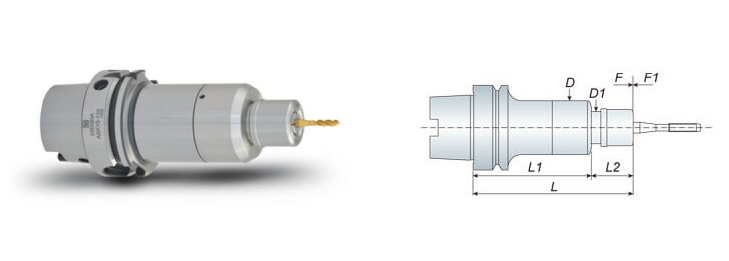

| Model No. | D | D1 | L | L1 | L2 | F | F1 | Tapping Range | Collet Type |
|---|---|---|---|---|---|---|---|---|---|
| HSK63A WASK06-090 | 35 | 19 | 90 | 66 | 24 | 0.5 | 0.5 | M1~M6 | ASK06 |
| HSK63A WASK06-120 | 120 | 54 | |||||||
| HSK63A WASK10-120 | 40 | 24 | 120 | 88 | 32 | 0.5 | 0.5 | M3~M12 | ASK10 ASK10E |
| HSK63A WASK10-145 | 145 | 57 | |||||||
| HSK63A WASK10-175 | 175 | 87 | |||||||
| HSK63A WASK13-120 | 46 | 29 | 120 | 32 | 0.5 | 0.5 | M3~M14 | ASK13 ASK13E | |
| HSK63A WASK13-145 | 145 | 57 | |||||||
| HSK63A WASK13-175 | 175 | 87 |
