Features
Specification
ART tap holder is without floating.
Tap collet is easy and quick to change.
Torque control type and positive drive type tap collets can be used for ART tap holder.

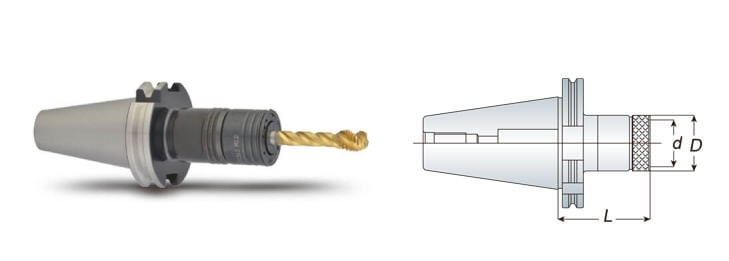

| Model No. | d | D | L | Tapping Range | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|
| SK30 ART312 | 19 | 36 | 60 | M3~12 | ATC312 | 0.60 |
| SK40 ART312 | 19 | 36 | 65 | M3~12 | ATC312 | 1.10 |
| SK50 ART312 | 19 | 36 | 80 | M3~12 | ATC312 | 3.00 |
| SK40 ART822 | 31 | 53 | 85 | M8~22 | ATC822 | 1.30 |
| SK50 ART822 | 31 | 53 | 95 | M8~22 | ATC822 | 3.40 |
