Compression and tension compensation at 0.5mm to make an accurate thread is maintained
Internal buffer of compression compensation reduce the pressure of torque for taps by 1/3
Tension compensation reduce the toque that increases the quantity and accuracy of tapped hole
Special design make good tapping accuracy and have long term tapping

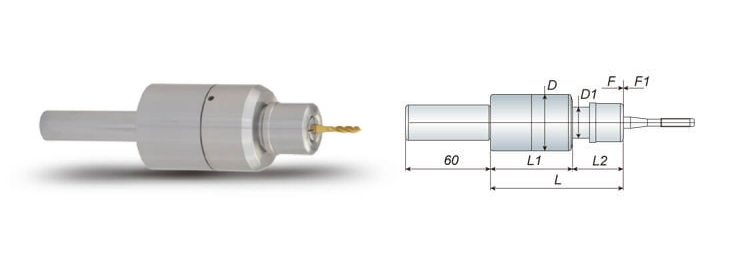

| Model No. | D | D1 | L | L1 | L2 | F< /th> | F1 | Tapping Range | Collet Type |
|---|---|---|---|---|---|---|---|---|---|
| C25 WASK10-090 | 40 | 22 | 90 | 58 | 32 | 0.5 | 0.5 | M3~M12 | ASK10 ASK10E |
