Features
Specification

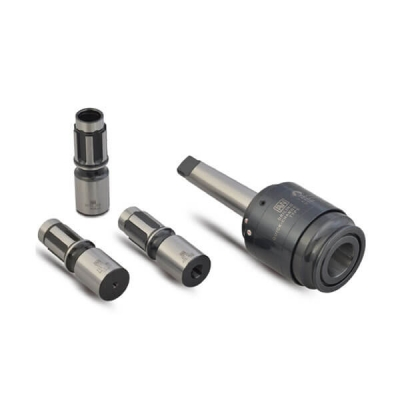

DT52 drill taper series is NOT sold with full set. The taper holder, collet and sleeve must be ordered separately.
The drill taper holder could be adjusted the torque with HIGH or LOW according to the tapped material.
When ordering tap collet, please specify shank diameter (Ød) and square size (SQ/ □ ).
| Model No. | Weight (kg) | |
|---|---|---|
| Taper Holder | DT52 MTA5 Holder | 7.00 |
| Tap Collet | M24,M27,M30,M33,M36,M39,M42, M45,M48,M52 | 2.30 |
| W1,W1-1/8,W1-1/4,W1-3/8, W1-1/2,W1-5/8,W1-3/4,W1-7/8,W2 | ||
| Sleeve | DT52-MT2 | 2.20 |
| DT52-MT3 | 2.20 | |
| DT52-MT4 | 2.20 | |
| DT52-MT5 | 1.70 | |
Unit: mm
DT52 Taper Collet Specification
| JIS | Ød | □ |
|---|---|---|
| DT52 M24 M25 | 19 | 15 |
| DT52 M27 W1 PT5/8 | 20 | 15 |
| DT52 M30 PT3/4 | 23 | 17 |
| DT52 M32 W1-1/4 PT7/8 | 24 | 19 |
| DT52 M33 | 25 | 19 |
| DT52 M34 M35 W1-3/8 PT1 | 26 | 21 |
| DT52 M36 PT1-1/8 | 28 | 21 |
| DT52 M39 M40 W1-1/2 | 30 | 23 |
| DT52 M42 W1-5/8 | 32 | 26 |
| DT52 M45 M46 W1-3/4 PT1-3/8 | 35 | 26 |
| DT52 M48 W1-7/8 PT1-1/2 | 38 | 29 |
| DT52 M50 W2 | 40 | 32 |
| DT52 M52 | 42 | 32 |
| DT52 W1-1/8 | 22 | 17 |
Unit: mm
| ISO | Ød | □ |
|---|---|---|
| DT52 M24 | 18 | 14 |
| DT52 M27 M30 | 20 | 16 |
| DT52 M33 | 22.4 | 18 |
| DT52 M36 | 25 | 20 |
| DT52 M39 M42 | 28 | 22.4 |
| DT52 M45 M48 | 31.5 | 25 |
| DT52 M52 | 35.5 | 28 |
Unit: mm
| DIN376 | Ød | □ |
|---|---|---|
| DT52 M27 | 20 | 16 |
| DT52 M30 | 22 | 18 |
| DT52 M33 | 25 | 20 |
| DT52 M36 | 28 | 22 |
| DT52 M39 M42 | 32 | 24 |
| DT52 M45 M48 | 36 | 29 |
| DT52 M52 | 40 | 32 |
Unit: mm
