Features
Specification
Accessories
TER tap holder uses the ER-GB tap collet and easy to get.
The nut could not be over tightening to avoid damaging the body and nut.
Straight shank tap holder also has flat shank type to choice. When ordering, please specify "FLAT".
Wrench must be ordered separately.

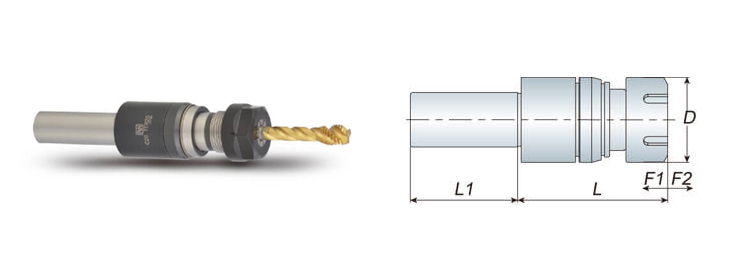

| Model No. | D | L | L1 | F1 | F2 | Tapping Range | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| C20 TER16 | 28 | 75 | 55 | 5 | 12 | M3~M10 | ER16GB | 0.40 |
| C20 TER20 | 34 | 80 | 55 | 5 | 12 | M3~M12 | ER20GB | 0.50 |
| C20 TER25 | 42 | 80 | 55 | 5 | 12 | M4~M16 | ER25GB | 0.80 |
| C25 TER16 | 28 | 75 | 65 | 5 | 12 | M3~M10 | ER16GB | 0.50 |
| C25 TER20 | 34 | 80 | 65 | 5 | 12 | M3~M12 | ER20GB | 0.60 |
| C25 TER25 | 42 | 80 | 65 | 5 | 12 | M4~M16 | ER25GB | 0.90 |
| C25 TER32 | 50 | 80 | 65 | 5 | 8 | M4~M22 | ER32GB | 1.10 |
| C32 TER16 | 28 | 75 | 70 | 5 | 12 | M3~M10 | ER16GB | 0.70 |
| C32 TER20 | 34 | 80 | 70 | 5 | 12 | M3~M12 | ER20GB | 0.80 |
| C32 TER25 | 42 | 80 | 70 | 5 | 12 | M4~M16 | ER25GB | 1.00 |
| C32 TER32 | 50 | 80 | 70 | 5 | 8 | M4~M22 | ER32GB | 1.20 |
| C40 TER16 | 28 | 75 | 70 | 5 | 12 | M3~M10 | ER16GB | 1.00 |
| C40 TER20 | 34 | 80 | 70 | 5 | 12 | M3~M12 | ER20GB | 1.00 |
| C40 TER25 | 42 | 80 | 70 | 5 | 12 | M4~M16 | ER25GB | 1.20 |
| C40 TER32 | 50 | 80 | 70 | 5 | 8 | M4~M22 | ER32GB | 1.50 |
