ATP tap holder is with tension and compression, so it could extend the tap lifetime.
Torque control type and positive drive type tap collets can be used for ATP tool holder.

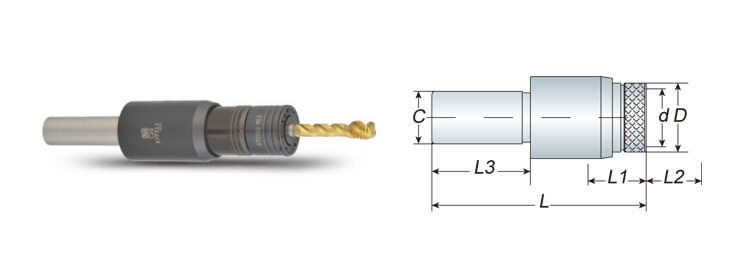

| Model No. | C | d | D | L | L1 | L2< /th> | L3 | Tapping Range | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| C20 ATP312 | 20 | 19 | 36 | 155 | 6~10 | 6~10 | 65 | M3~M12 | ATC312 | 0.90 |
| C25 ATP312 | 25 | 19 | 36 | 155 | 6~10 | 6~10 | 65 | M3~M12 | ATC312 | 1.00 |
| C25 ATP822 | 25 | 31 | 53 | 185 | 6~10 | 6~10 | 70 | M8~M22 | ATC822 | 1.70 |
| C32 ATP822 | 32 | 31 | 53 | 185 | 6~10 | 6~10 | 70 | M8~M22 | ATC822 | 1.90 |
