Features
Specification
TP tap holder can be used to connect with end mill holder, milling chuck holder and JTA drill chuck holder.
It is the simple tap holder without floating and also use TPC316 tap collet.

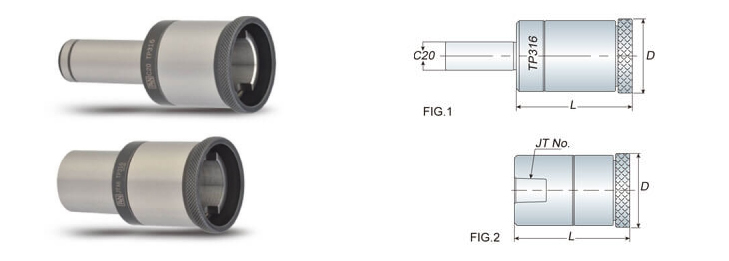

| Model No. | FIG. | L | D | Tapping Range | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|
| C20 TP316 | 1 | 50 | 42 | M3~M16 | TPC316 | 0.40 |
| JT2 TP316 | 2 | 75 | 42 | M3~M16 | TPC316 | 0.50 |
| JT6 TP316 | 2 | 75 | 42 | M3~M16 | TPC316 | 0.40 |
