Features
Specification

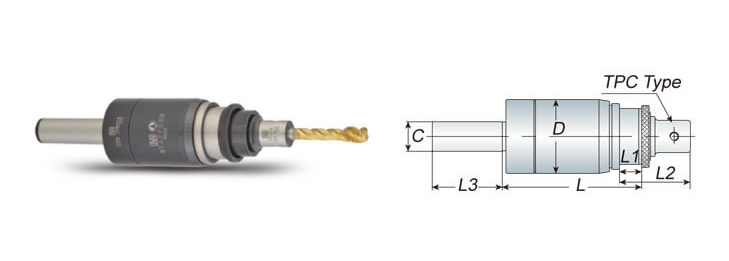

L1: Compression, L2: Tension
Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
| Model No. | C | D | L | L1 | L2 | L3< /th> | Tapping Range | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| C20 TPM316 | 20 | 48 | 130 | 10 | 20 | 65 | M3~M16 | TPC316 | 1.20 |
| C25 TPM830 | 25 | 66 | 160 | 10 | 25 | 65 | M8~M30 | TPC830 | 2.10 |
| C32 TPM830 | 32 | 66 | 160 | 10 | 25 | 65 | M8~M30 | TPC830 | 2.40 |
