Features
Specification
Accessories

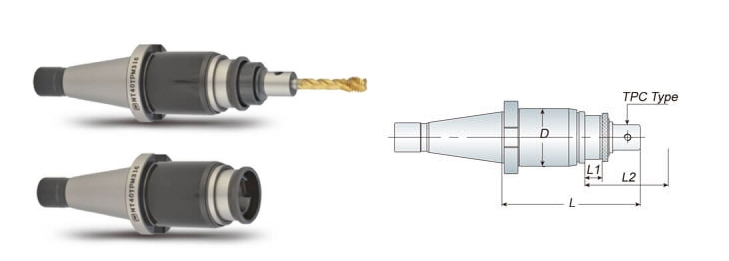

L1: Compression, L2: Tension
Quick change: Push back on the holder sleeve, and the tap collet is removable easily.
When ordering, please specify the draw bolt with inch size or metric size.
| Model No. | D | L | L1 | L2 | Tapping Range | Collet Type | Draw Bolt | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| NT30 TPM316 | 48 | 140 | 10 | 20 | M3~M16 | TPC316 | 1/2"-12 M12x1.75P | 1.30 |
| NT40 TPM316 | 48 | 130 | 10 | 20 | M3~M16 | TPC316 | 5/8"-11 M16x2.0P | 1.50 |
| NT50 TPM316 | 48 | 125 | 10 | 20 | M3~M16 | TPC316 | 1"-8 M24x3.0P | 3.40 |
| NT30 TPM830 | 66 | 175 | 10 | 25 | M8~M30 | TPC830 | 1/2"-12 M12x1.75P | 2.40 |
| NT40 TPM830 | 66 | 175 | 10 | 25 | M8~M30 | TPC830 | 5/8"-11 M16x2.0P | 2.70 |
| NT50 TPM830 | 66 | 150 | 10 | 25 | M8~M30 | TPC830 | 1"-8 M24x3.0P | 3.90 |
| NT50 TPG830 | 75 | 240 | 10 | 80 | M8~M30 | TPC830 | 1"-8 M24x3.0P | 7.40 |
