Features
Specification
Collet must be assembled into the cla,ping nut before inserting into the chuck
Attaching, and detaching collets

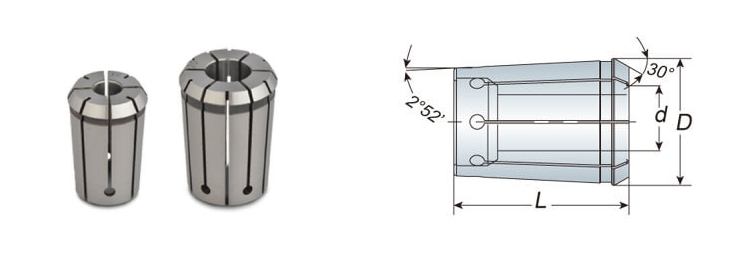

Metric Size
| Model No. | D | L | d | Weight (kg) |
|---|---|---|---|---|
| OZ25 | 35.05 | 52 | 3,4,5,6,7,8,9,10,11,12,13,14,15, 16,17,18,19,20,21,22,23,24,25 | 0.17 |
| OZ32 | 44 | 60 | 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 ,21,22,23,24,25,26,27,28,29,30,31,32 | 0.36 |
Inch Size
| Model No. | D | L | d (Inch) | Weight (kg) |
|---|---|---|---|---|
| OZ25 | 35.05 | 52 | 1/8,3/16,1/4,5/16,3/8,7/16,1/2,9/16,5/8, 11/16,3/4,13/16,7/8,15/16,1 | 0.18 |
| OZ32 | 44 | 60 | 1/4,5/16,3/8,7/16,1/2,9/16,5/8,11/16, 3/4,13/16,7/8,15/16,1, 1-1/8,1-1/4 | 0.36 |
