CS Combined Face Mill HolderSK SERIES DIN2080

Consult

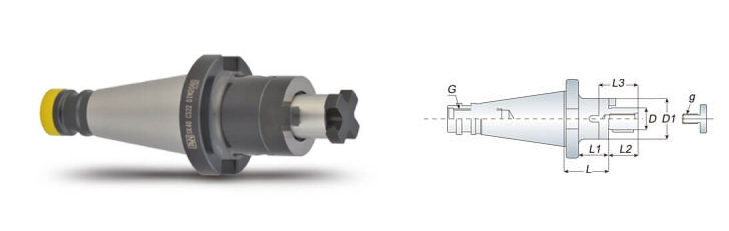

CS 壳型平面铣刀杆-1.jpg

Features

Specification

Accessories

Face mill cutter must be ordered separately.

Model No.	D	D1	L	L1	L2	L3	g	G	Weight(kg)
SK40 CS16	16	32	51.6	40	17	27	M8	M16	1.30
SK40 CS22	22	40	51.6	40	19	31	M10	M16	1.40
SK40 CS27	27	48	51.6	40	21	33	M12	M16	1.70
SK40 CS32	32	58	51.6	40	24	38	M16	M16	1.90
SK40 CS40	40	70	51.6	40	27	41	M20	M16	2.40
SK50 CS16	16	32	55.2	40	17	27	M8	M24	3.10
SK50 CS22	22	40	55.2	40	19	31	M10	M24	3.30
SK50 CS27	27	48	55.2	40	21	33	M12	M24	3.50
SK50 CS32	32	58	55.2	40	24	38	M16	M24	3.90
SK50 CS40	40	70	55.2	40	27	41	M20	M24	4.30

Unit: mm
