Features
Specification

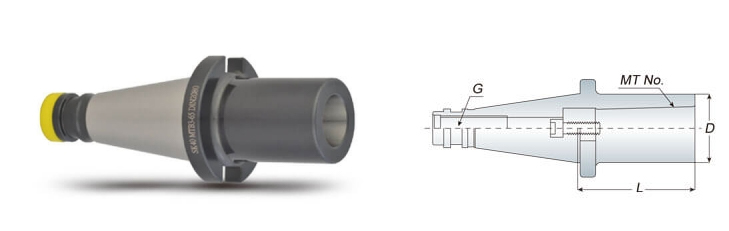

The tool holder for morse taper shank with internal draw bolt thread.
| Model No. | MT. No. | D | L | Capacity | G | Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|
| Drill | Reamer | End Mill | ||||||
| SK40 MTB1-050 | MTB1 | 25 | 50 | 2~14 | 5~14 | 10~14 | M16 | 1.00 |
| SK40 MTB2-050 | MTB2 | 32 | 50 | 14~23 | 14.5~23 | 16~22 | M16 | 1.00 |
| SK40 MTB3-065 | MTB3 | 40 | 65 | 23~32 | 24~32 | 24~32 | M16 | 1.20 |
| SK50 MTB1-060 | MTB1 | 25 | 60 | 2~14 | 5~14 | 10~14 | M24 | 2.80 |
| SK50 MTB2-060 | MTB2 | 32 | 60 | 14~23 | 14.5~23 | 16~22 | M24 | 2.80 |
| SK50 MTB3-065 | MTB3 | 40 | 65 | 23~32 | 24~32 | 24~32 | M24 | 2.90 |
| SK50 MTB4-085 | MTB4 | 50 | 85 | 32~50 | 32~50 | 35~50 | M24 | 3.00 |
Unit: mm
