Features
Specification
Accessories
AMG tooling system is suitable for high speed and heavy cutting simultaneously.
AMG tooling system is special designed for coolant type - JET THROUGH.
High precision clamping because of the design of needle roller bearing.
The spacer could make the flange & nut be tightened and provide exceptional rigidity.
Wrench must be ordered separately.
Balancing: 30,000 r.p.m G2.5
AMG Double Power Chuck with nut for C-WRENCH is available.
Please change name from AMG to AMC of each model no. when ordering.
Example: SK40 AMC16-100

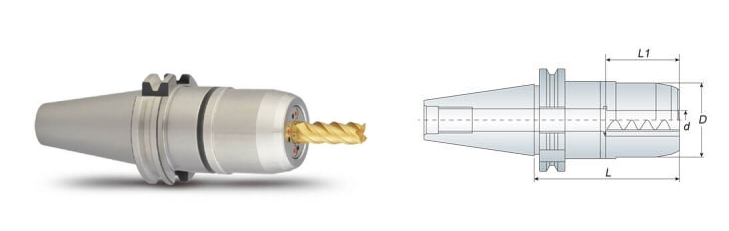

| Model No. | d | D | L | L1 | Wrench | Weight(kg) |
|---|---|---|---|---|---|---|
| SK40 AMG12-090 | 12 | 46 | 90 | 67 | WAMG12 | 1.60 |
| SK40 AMG16-100 | 16 | 54 | 100 | 60 | WAMG16 | 2.30 |
| SK40 AMG20-110 | 20 | 58 | 110 | 70 | WAMG20 | 2.40 |
| SK40 AMG25-110 | 25 | 62 | 110 | 90 | WAMG25 | 2.60 |
| SK40 AMG32-110 | 32 | 70 | 110 | 90 | WAMG32 | 2.70 |
| SK50 AMG12-090 | 12 | 46 | 90 | 67 | WAMG12 | 4.60 |
| SK50 AMG16-110 | 16 | 54 | 110 | 60 | WAMG16 | 4.90 |
| SK50 AMG20-110 | 20 | 58 | 110 | 70 | WAMG20 | 4.90 |
| SK50 AMG25-110 | 25 | 62 | 110 | 90 | WAMG25 | 4.90 |
| SK50 AMG32-110 | 32 | 70 | 110 | 90 | WAMG32 | 5.00 |
Unit: mm
