Features
Specification

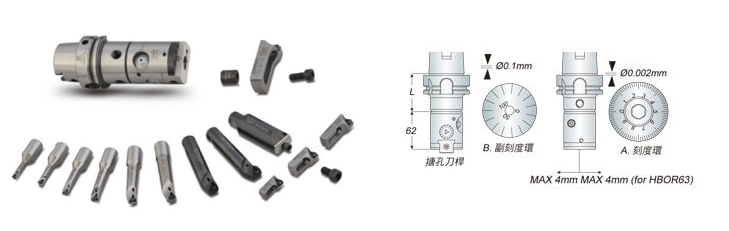

HBOR63 micro boring system which boring range is from 6~90mm / 6 ~ 150mm.
The inside diameter of HBOR63 micro boring system is 16mm.
HBOR63 boring set => refer to P .130
HBOR63 boring head can match BM140 series for optional. It can extend boring range to 280mm (6~280mm). => refer to P .131
Insert must be ordered separately.
| Model No. | Micro Boring Head Type | L | Weight(kg) |
|---|---|---|---|
| HSK63A HBOR63/SET | 6~150 | 67 | 12.00 |
Unit: mm
