Features
Specification
Weldon Holder for straight shank end mill.

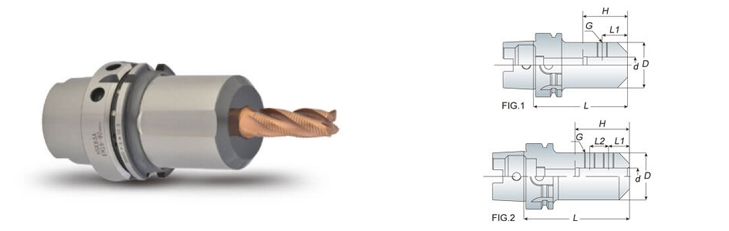

End mill is held by one (FIG.1) or two (FIG.2) set screws.
End mill holder comes equipped with set screws.
Balancing: 30,000 r.p.m G2.5
| Model No. | FIG. | d | D | L | L1 | L2 | H | G | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| HSK50A EM06-065 | 1 | 6 | 25 | 65 | 18 | - | 28 | M06x1.0P | 0.60 |
| HSK50A EM08-065 | 1 | 8 | 28 | 65 | 18 | - | 35 | M08x1.25P | 0.70 |
| HSK50A EM10-065 | 1 | 10 | 35 | 65 | 20 | - | 40 | M10x1.5P | 0.80 |
| HSK50A EM12-080 | 1 | 12 | 42 | 80 | 22.5 | - | 45 | M10x1.5P | 1.00 |
| HSK50A EM16-080 | 1 | 16 | 48 | 80 | 24 | - | 50 | M10x1.5P | 1.10 |
| HSK50A EM20-080 | 1 | 20 | 52 | 80 | 25 | - | 55 | M12x1.75P | 1.20 |
| HSK63A EM06-065 | 1 | 6 | 25 | 65 | 18 | - | 28 | M06x1.0P | 0.90 |
| HSK63A EM08-065 | 1 | 8 | 28 | 65 | 18 | - | 35 | M08x1.25P | 0.90 |
| HSK63A EM10-065 | 1 | 10 | 35 | 65 | 20 | - | 40 | M10x1.5P | 1.00 |
| HSK63A EM12-065 | 1 | 12 | 42 | 65 | 22.5 | - | 40 | M10x1.5P | 1.10 |
| HSK63A EM16-080 | 1 | 16 | 48 | 80 | 24 | - | 50 | M10x1.5P | 1.40 |
| HSK63A EM20-080 | 1 | 20 | 52 | 80 | 25 | - | 55 | M12x1.75P | 1.50 |
| HSK63A EM25-110 | 2 | 25 | 65 | 110 | 24 | 49 | 60 | M12x1.75P | 2.50 |
| HSK63A EM32-110 | 2 | 32 | 72 | 110 | 24 | 52 | 70 | M16x2.0P | 2.70 |
Unit: mm
