SLA End Mill HolderHSK SERIES

Consult

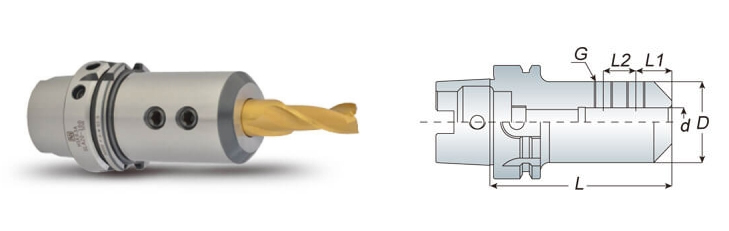

SLA 侧固端铣刀杆-1.jpg

Features

Specification

For straight shank end mill.

End mill is held by two set screws.

End mill holder comes equipped with set screws.

Balancing: 30,000 r.p.m G2.5

Model No.	d	D	L	L1	L2	H	G	Weight(kg)
HSK50A SLA06-080	6	25	80	12	10	28	M06x1.0P	0.80
HSK50A SLA08-080	8	28	80	14	12	35	M08x1.25P	0.80
HSK50A SLA10-080	10	35	80	15	14	40	M10x1.5P	0.90
HSK50A SLA12-080	12	42	80	20	16	45	M10x1.5P	1.00
HSK50A SLA16-090	16	48	90	22	18	50	M10x1.5P	1.10
HSK50A SLA20-090	20	50	90	25	20	58	M12x1.75P	1.20
HSK63A SLA06-080	6	25	80	12	10	32	M06x1.0P	1.00
HSK63A SLA08-080	8	28	80	14	12	35	M08x1.25P	1.10
HSK63A SLA10-080	10	35	80	15	14	40	M10x1.5P	1.20
HSK63A SLA12-080	12	40	80	20	16	45	M10x1.5P	1.30
HSK63A SLA16-100	16	45	100	22	18	50	M10x1.5P	1.70
HSK63A SLA20-100	20	50	100	25	20	65	M12x1.75P	1.90
HSK63A SLA25-110	25	55	110	25	22	65	M12x1.75P	2.00
HSK63A SLA32-110	32	60	110	30	22	70	M16x2.0P	2.80
HSK100A SLA06-080	6	25	80	12	10	32	M06x1.0P	2.10
HSK100A SLA08-080	8	28	80	14	12	35	M08x1.25P	2.20
HSK100A SLA10-080	10	35	80	15	14	40	M10x1.5P	2.30
HSK100A SLA12-080	12	40	80	20	16	45	M10x1.5P	2.40
HSK100A SLA16-100	16	48	100	22	18	50	M10x1.5P	2.80
HSK100A SLA20-100	20	52	100	25	20	55	M12x1.75P	2.90
HSK100A SLA25-100	25	65	100	25	22	60	M12x1.75P	3.50
HSK100A SLA32-100	32	75	100	30	22	65	M16x2.0P	3.90
HSK100A SLA40-105	40	80	105	30	22	70	M16x2.0P	4.30

Unit: mm
