ASR 烧结式刀杆BT / NT SERIES

Consult

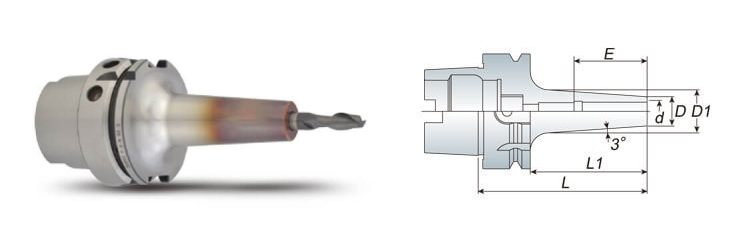

ASR 烧结式刀杆-1.jpg

Features

Specification

刀杆加热器规格请参考 P .34

刀杆限用 h6 钨钢刀具

动平衡：30,000 r.p.m G2.5

型号	d	D	D1	L	L1	E	重量(kg)
HSK63A ASR04-090	4	10	14.6	90	45	16	0.80
HSK63A ASR05-090	5	10	15.7	90	46	20	0.80
HSK63A ASR06-090	6	14	19	90	50	24	0.90
HSK63A ASR08-090	8	18	23	90	50	26	0.90
HSK63A ASR10-090	10	22	27	90	50	30	1.00
HSK63A ASR12-090	12	24	29	90	50	30	1.00
HSK63A ASR16-090	16	28	33	90	50	36	1.10
HSK63A ASR20-100	20	34	40	100	50	40	1.20
HSK63A ASR25-115	25	44	50	115	89	45	1.40
HSK63A ASR32-120	32	44	50	120	94	45	1.50
HSK100A ASR04-105	4	10	16.5	105	66	16	2.00
HSK100A ASR05-105	5	10	16.5	105	66	20	2.20
HSK100A ASR06-105	6	14	20	105	57	24	2.30
HSK100A ASR08-105	8	18	24	105	57	26	2.50
HSK100A ASR10-105	10	22	28	105	57	30	2.50
HSK100A ASR12-105	12	24	30	105	57	30	2.60
HSK100A ASR16-105	16	28	34	105	57	36	2.70
HSK100A ASR20-105	20	34	40	105	57	40	2.80
HSK100A ASR25-115	25	44	52	115	74	45	3.50
HSK100A ASR32-120	32	44	52	120	78	45	4.60

Unit: mm
