ADS tool holder is suitable for high-speed and high precision cutting. Tool holder designed without nut could reduce cutting vibration.
Wrench is attached for each ADS tool holder.
Balancing: 30,000 r.p.m G2.5

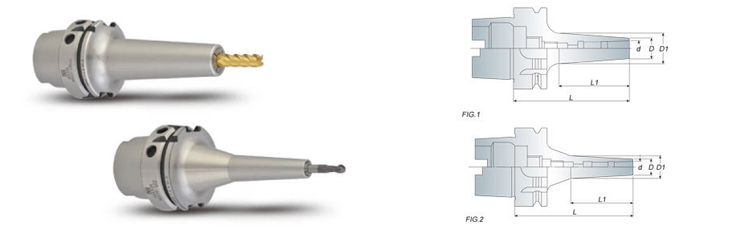

| Model No. | FIG. | Clamping Ranged (d) | D | D1 | L | L1 | Weight(kg) |
|---|---|---|---|---|---|---|---|
| HSK40A ADS06-090 | 2 | 1~6 | 13 | 18 | 90 | 48 | 0.50 |
| HSK50A ADS08-085 | 1 | 3~8 | 16 | 23 | 85 | 50 | 0.60 |
| HSK50A ADS08-125 | 2 | 3~8 | 16 | 29 | 125 | 91.5 | 0.80 |
| HSK50A ADS10-095 | 1 | 3~10 | 21 | 27 | 95 | 59.5 | 1.00 |
| HSK50A ADS12-125 | 1 | 3~12 | 23 | 37.5 | 125 | 96 | 0.80 |
| HSK63A ADS06-095 | 2 | 2~6 | 13 | 18 | 95 | 50 | 0.90 |
| HSK63A ADS06-120 | 2 | 2~6 | 13 | 19 | 120 | 60 | 1.00 |
| HSK63A ADS06-150 | 2 | 2~6 | 13 | 21 | 150 | 76 | 1.20 |
| HSK63A ADS08-100 | 1 | 3~8 | 16 | 25 | 100 | 64.7 | 1.00 |
| HSK63A ADS10-095 | 1 | 3~10 | 21 | 27 | 95 | 59.5 | 1.00 |
| HSK63A ADS10-120 | 1 | 3~10 | 21 | 29.6 | 120 | 82.6 | 1.10 |
| HSK63A ADS10-150 | 1 | 3~10 | 21 | 33 | 150 | 114.5 | 1.60 |
| HSK63A ADS12-125 | 1 | 3~12 | 23 | 33 | 125 | 87.6 | 1.20 |
| HSK63A ADS12-150 | 1 | 3~12 | 23 | 36 | 150 | 114.5 | 1.70 |
| HSK63A ADS16-125 | 1 | 5~16 | 28 | 38 | 125 | 89.5 | 1.30 |
| HSK100A ADS06-130 | 2 | 2~6 | 13 | 20 | 130 | 65 | 2.50 |
| HSK100A ADS06ADS08-130 | 1 | 3~8 | 16 | 28.5 | 130 | 89.8 | 2.50 |
| HSK100A ADS06ADS10-130 | 1 | 3~10 | 21 | 30.5 | 130 | 101 | 2.60 |
| HSK100A ADS06ADS12-130 | 1 | 3~12 | 23 | 32 | 130 | 77 | 2.70 |
| HSK100A ADS06ADS16-130 | 1 | 5~16 | 28 | 37.6 | 130 | 82 | 2.90 |
