Features
Specification
Wrench must be ordered separately.

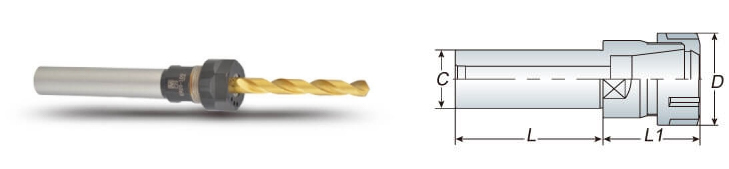

| Model No. | C | D | L | L1 | Collet Type | Weight (kg) |
|---|---|---|---|---|---|---|
| C20 ER16-050 | 20 | 28 | 50 | 35 | ER16 | 0.20 |
| C20 ER16-100/150 | 20 | 28 | 100/150 | 35 | 0.35/0.45 | |
| C20 ER20-050 | 20 | 34 | 50 | 40 | ER20 | 0.25 |
| C20 ER20-100/150 | 20 | 34 | 100/150 | 40 | 0.40/0.50 | |
| C20 ER25-050 | 20 | 42 | 50 | 46 | ER25 | 0.40 |
| C20 ER25-100/150 | 20 | 42 | 100/150 | 46 | 0.50/0.70 | |
| C25 ER16-100/150 | 25 | 28 | 100/150 | 20 | ER16 | 0.40/0.70 |
| C25 ER20-100/150 | 25 | 34 | 100/150 | 38 | ER20 | 0.50/0.75 |
| C25 ER25-100/150 | 25 | 42 | 100/150 | 42 | ER25 | 0.55/0.80 |
| C25 ER32-080 | 25 | 50 | 80 | 58 | ER32 | 0.80 |
| C25 ER40-100 | 25 | 63 | 100 | 60 | ER40 | 1.10 |
| C32 ER25-060 | 32 | 42 | 60 | 46 | ER25 | 0.70 |
| C32 ER32-100/150 | 32 | 50 | 100/150 | 58 | ER32 | 1.10/1.40 |
| C32 ER40-100 | 32 | 63 | 100 | 60 | ER40 | 1.30 |
| C40 ER32-100 | 40 | 50 | 100 | 52 | ER32 | 1.30 |
| C40 ER40-100 | 40 | 63 | 100 | 60 | ER40 | 1.60 |
