特性
规格
| 筒夹等级 | 跳动精度 - 4 倍直径前 |
|---|---|
| A 级 | ≦ 10μ |
| AA 级 | ≦ 5μ |
请于订购时注明 A 级或 AA 级，例: ADS12-08AA
ADS06 另有尺寸 1, 1.1, 1.2, 1.3, 1.4 . . . 5.9, 6.0 可供选择
d 尺寸另有英制规格可接受订单生产

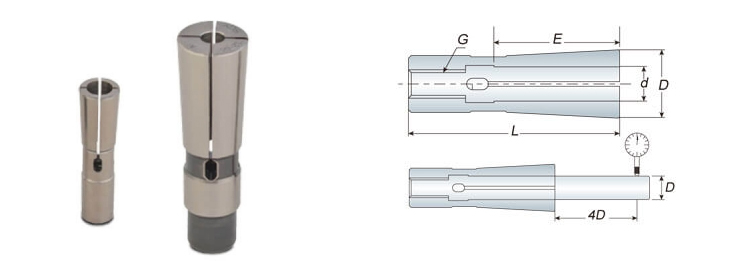

| 型号 | d | D | L | E | G | 重量 (kg) |
|---|---|---|---|---|---|---|
| ADS06-02 | 2 | 9.6 | 36 | 22 | M5x0.8P | 0.01 |
| ADS06-03 | 3 | |||||
| ADS06-3.175 | 3.175 | |||||
| ADS06-04 | 4 | |||||
| ADS06-05 | 5 | |||||
| ADS06-06 | 6 | |||||
| ADS08-03 | 3 | 12 | 37 | 22 | M5x0.8P | 0.02 |
| ADS08-3.175 | 3.175 | |||||
| ADS08-04 | 4 | |||||
| ADS08-05 | 5 | |||||
| ADS08-06 | 6 | |||||
| ADS08-07 | 7 | |||||
| ADS08-08 | 8 | |||||
| ADS10-03 | 3 | 15 | 45 | 27 | M6x1.0P | 0.05 |
| ADS10-04 | 4 | |||||
| ADS10-05 | 5 | |||||
| ADS10-06 | 6 | |||||
| ADS10-07 | 7 | |||||
| ADS10-08 | 8 | |||||
| ADS10-09 | 9 | |||||
| ADS10-10 | 10 |
